Diagrams

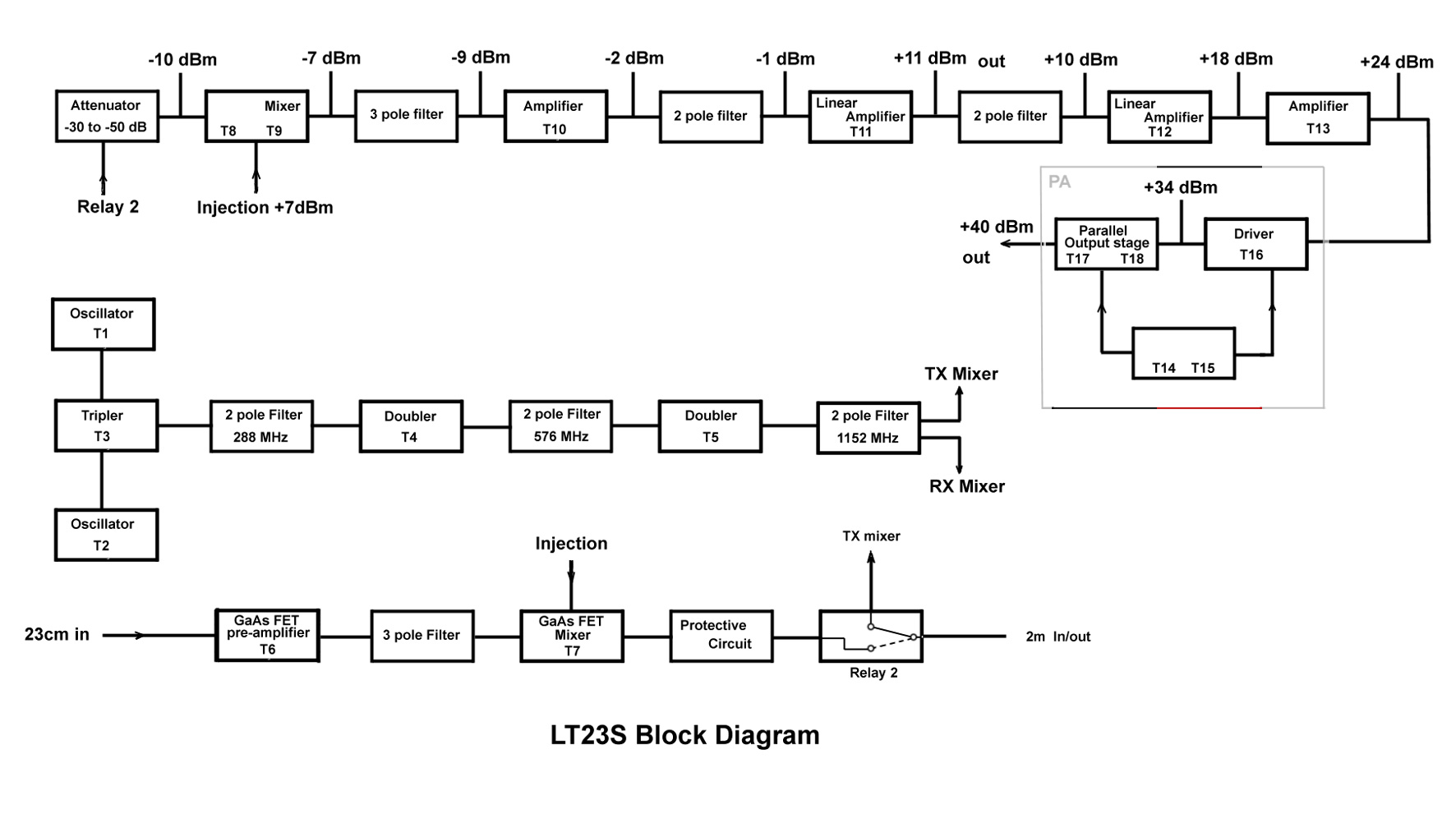

LT23S Block diagram

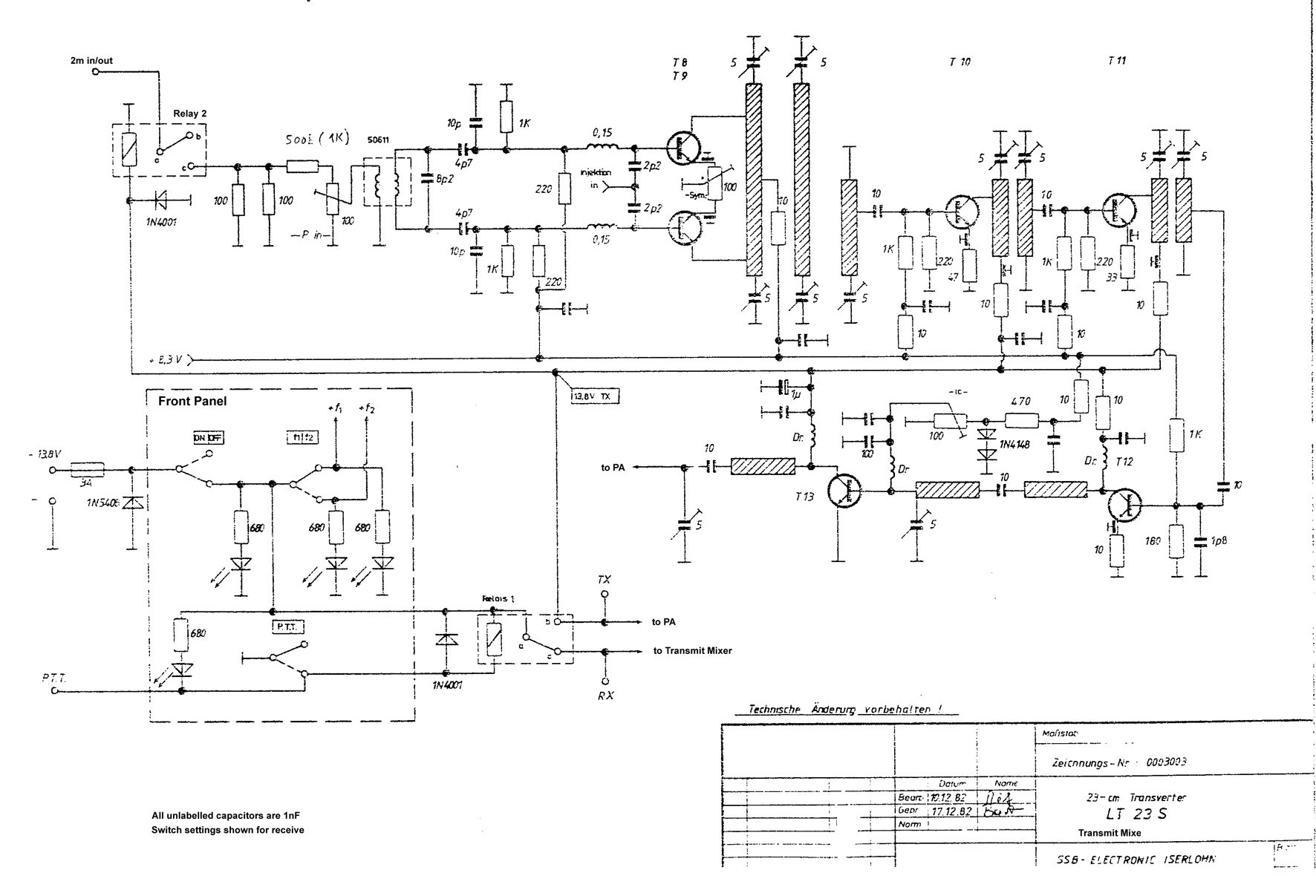

Transmit Mixer and Switching

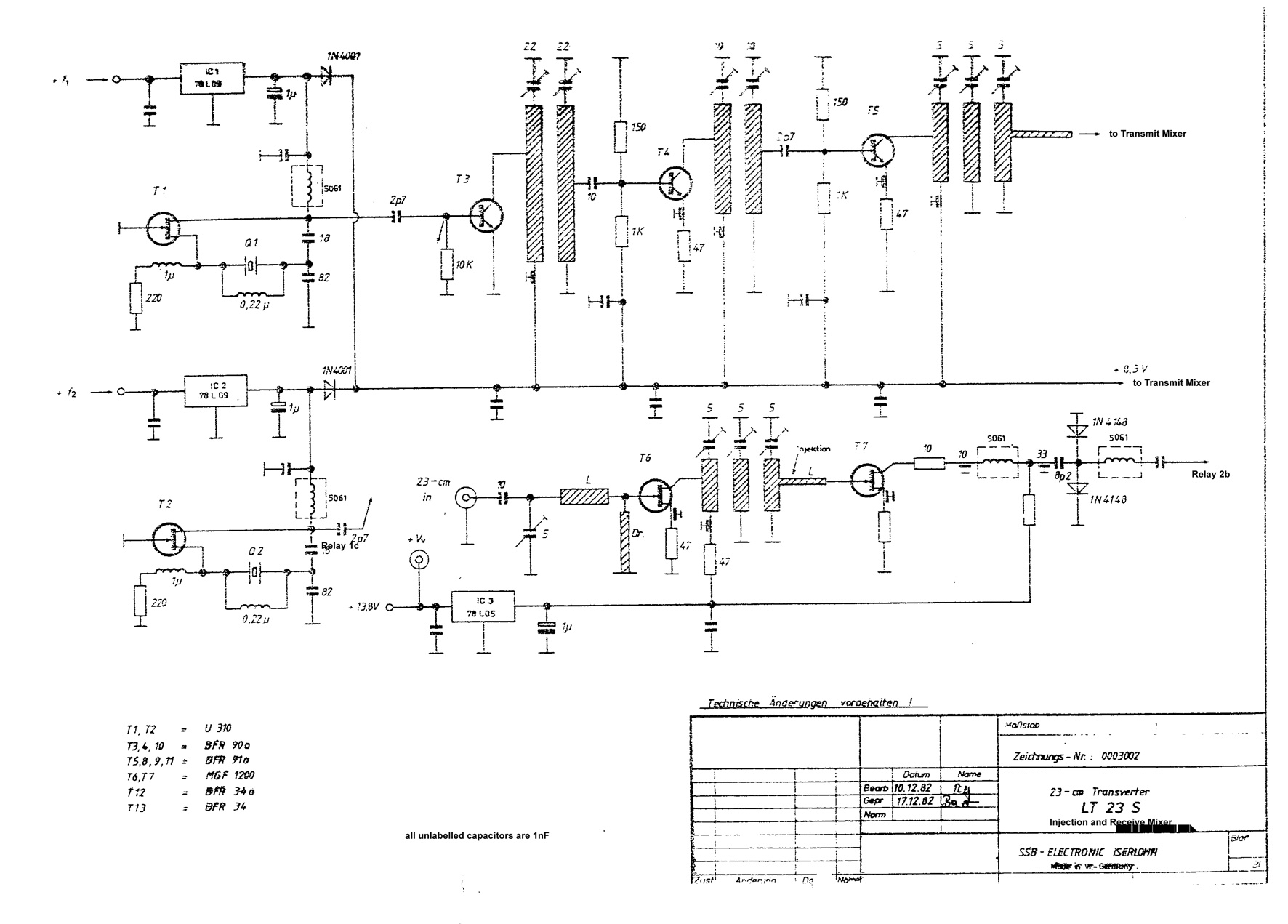

Injection and Receive Mixer

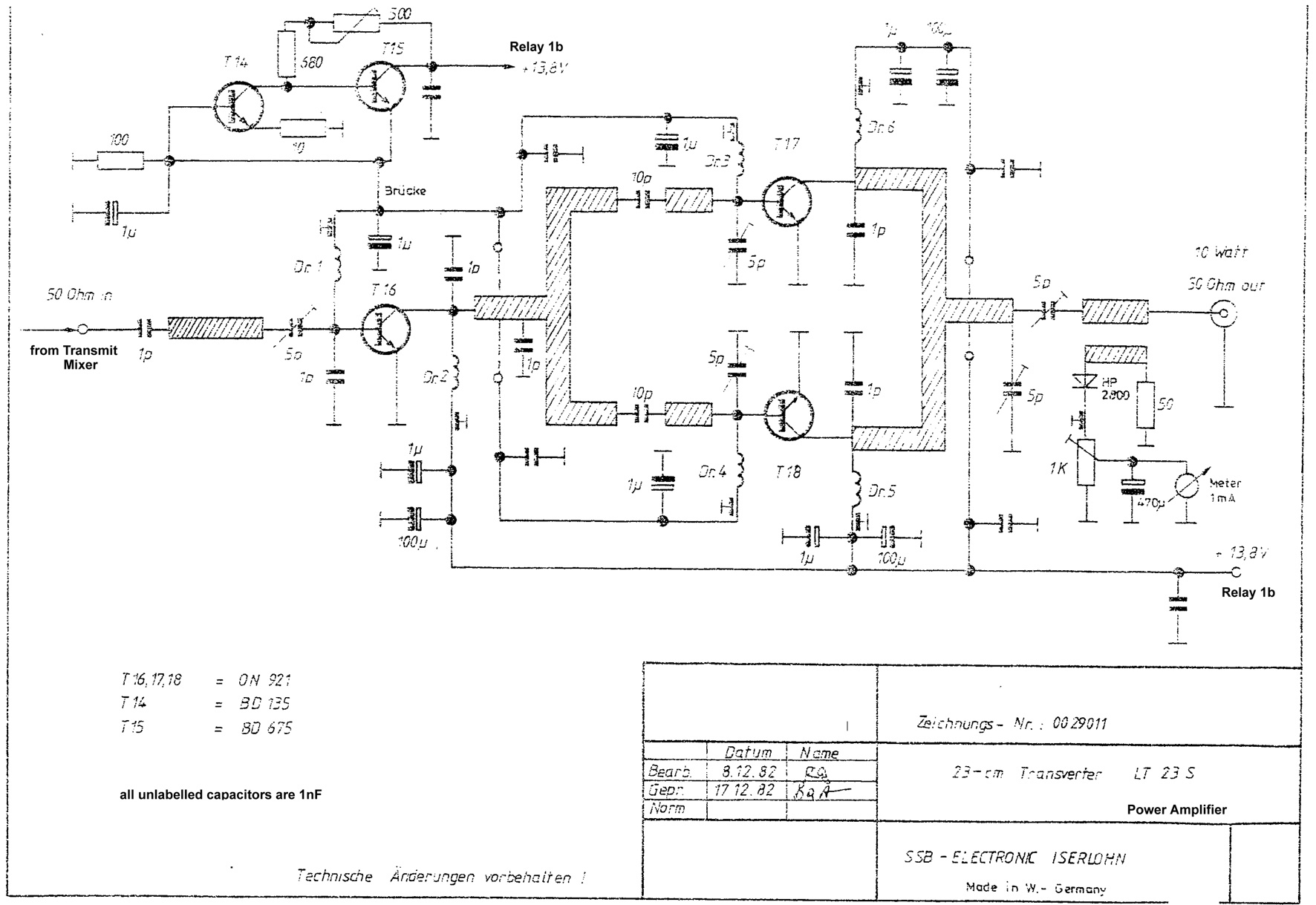

Power Amplifier

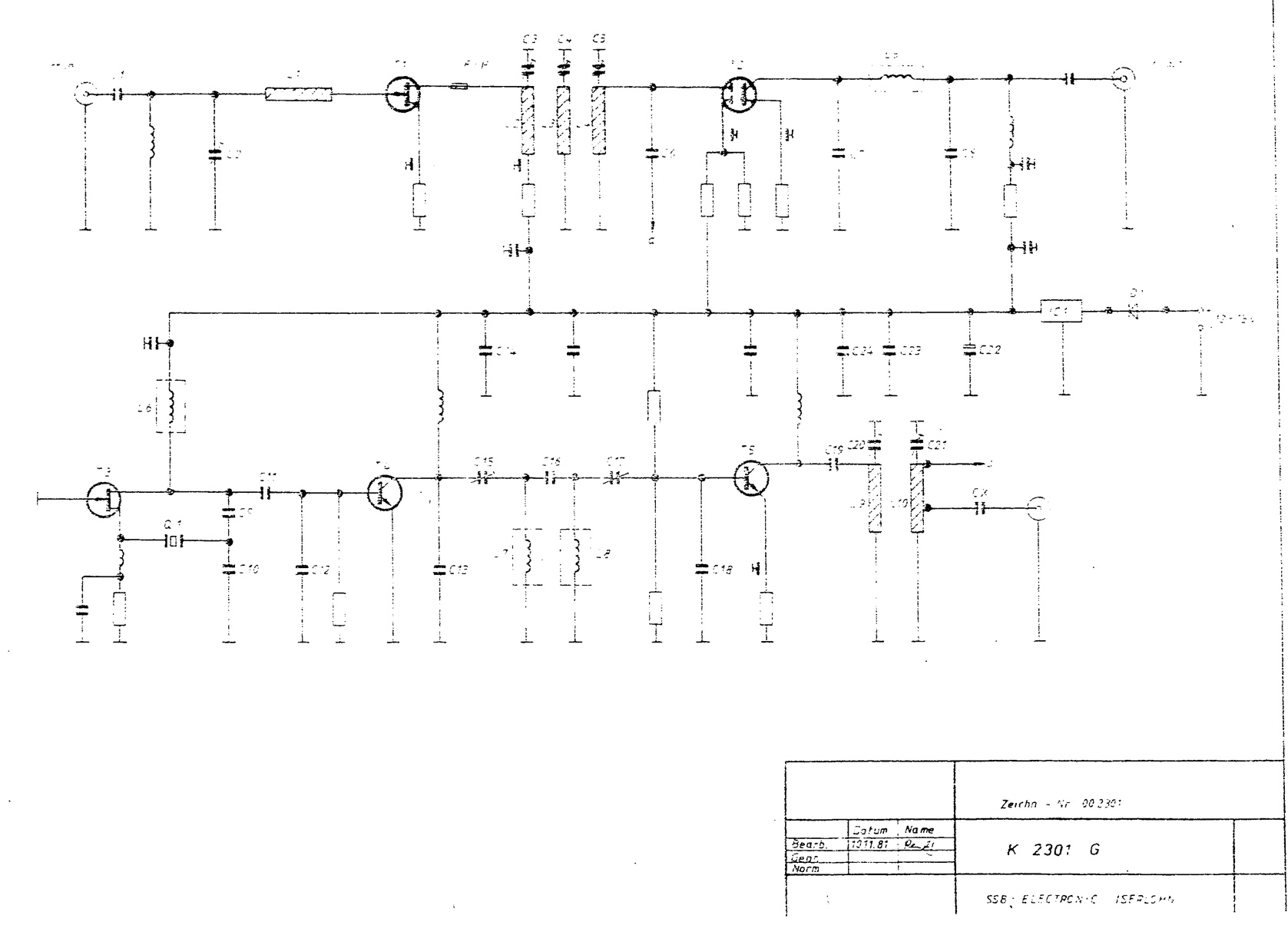

Local Oscillators and Multipliers
